Geometry: drebule0002.stl. Generated from drebule0001: flat corner plates replaced by C2 quintic teardrop-profile fairings (chord 78 mm, 18 mm max thickness); central body replaced by a revolved streamlined cone (tuned Haack-style nose, longer cylindrical mid, smoother tail taper). Steady RANS, freestream -Z, same mesh, 300 iterations per run.
| Condition | Cd | Cl | Drag (N) |
|---|---|---|---|
| 42 m/s (~151 km/h) | 0.0696 | 0.009802 | 4.2125 |
| 300 km/h (83.33 m/s) | 0.0701 | 0.011377 | 16.7157 |
Reference: Aref = 0.056045 m², mesh cells = 562726. Latest case time on disk is the last run (300 km/h).

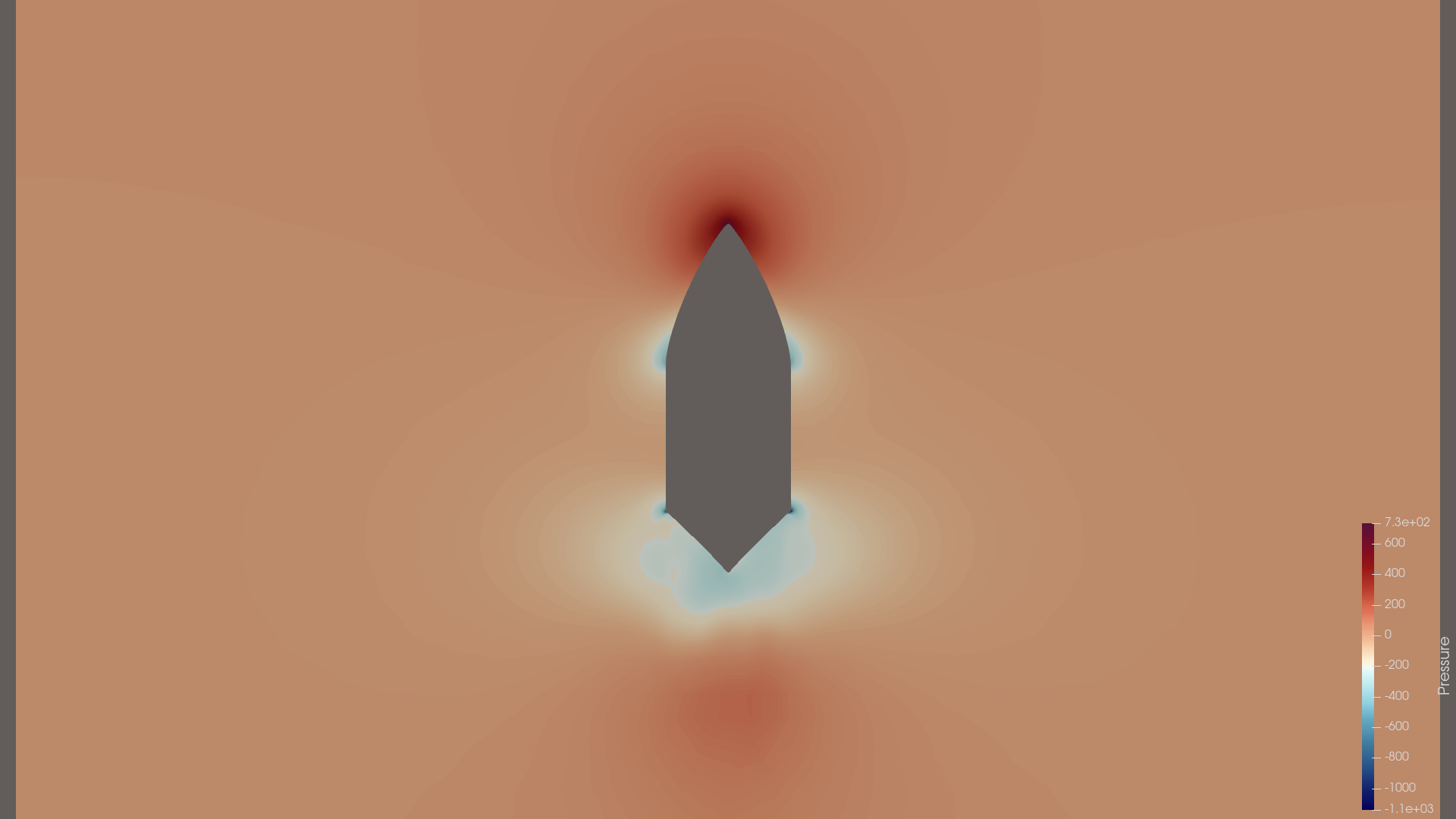

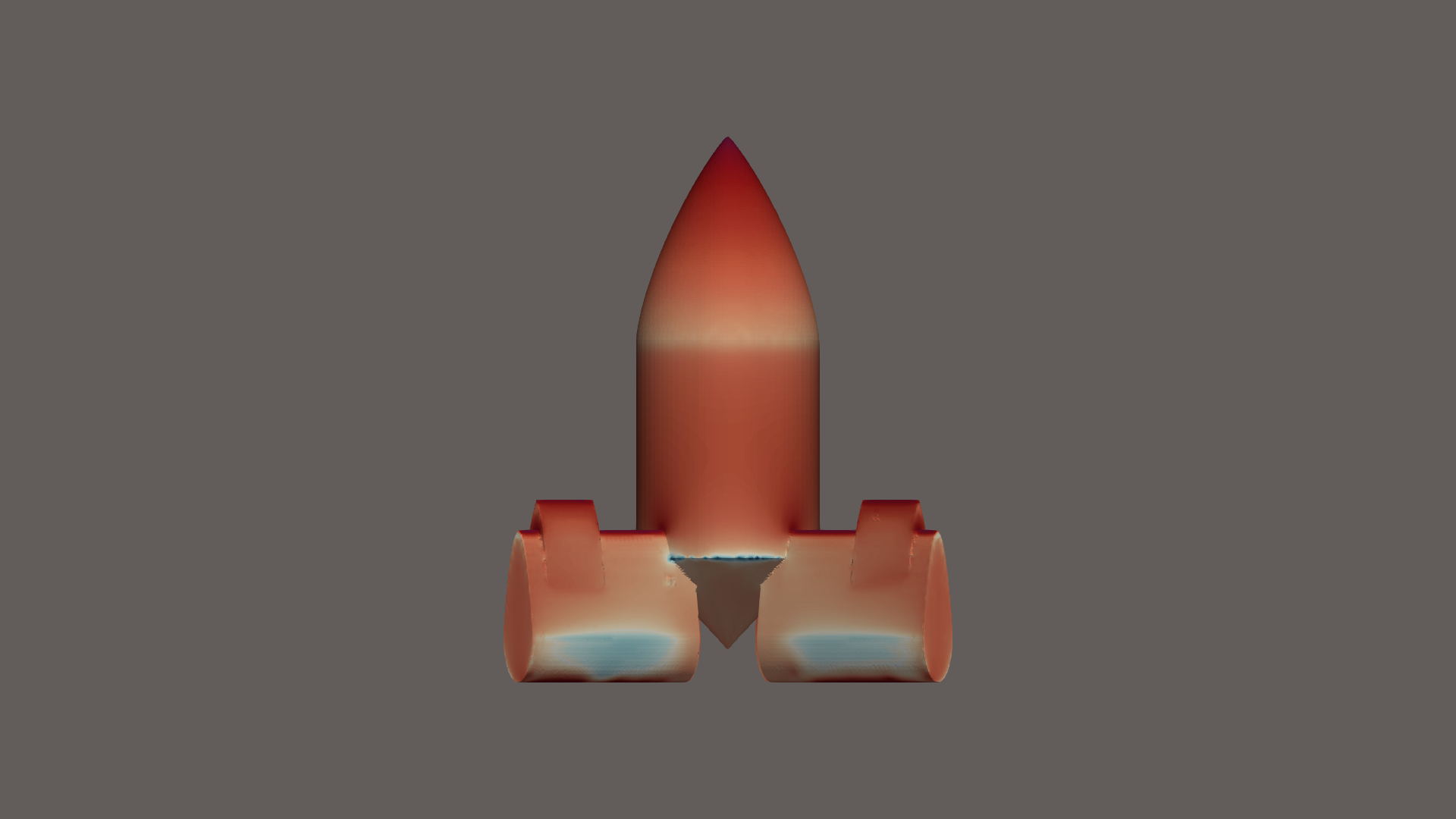

Surface view shows the full model; the Y-normal slice can emphasize the central body because most geometry sits away from Y=0.
Cd and drag use the simulator reference area from the STL bounding-box proxy. Compare to v1 only with care (Aref changed with geometry).
