Teardrop wing / motor fairing — OpenFOAM `forceCoeffs` (all case folders)

Order: highest teardropv number first. Case folders whose names include with_hubshield are omitted. One row per listed OpenFOAM case directory under the repo (name starts with teardrop, ends with _sim or Simulation).

Machine-readable: teardrop_force_coeffs_results.json. Design constraints (span, thickness, Z): design_constraints.md. Payload fairing hub (same visual design): payload fairing 205×92 index.

Simulation setup (typical)

OpenFOAM 13, steady incompressible RANS, SST k–ω where cases are complete; forceCoeffs reference values from each case file header (magUInf, Aref, lRef). Drag column: Cd × ½ρU²Aref with ρ = 1.225 kg/m³ and U = magUInf from the file (speed differs between cases).

CFD results — `forceCoeffs` (last 50 iterations averaged)

Case folder	Cd	Cl	Cm	Drag (N)	Speed (m/s)	Aref (m²)	lRef (m)	Last iter	Mesh cells
`teardropv20_sim`	0.0103	0.000145	−0.000023	0.092	42	0.00822	0.073	500	98 069
`teardropv19_sim`	0.0116	0.000156	−0.000022	0.103	42	0.00823	0.073	500	97 594
`teardropv18_sim`	0.0130	0.000608	−0.000124	0.116	42	0.00823	0.073	500	104 256
`teardropv17_sim`	0.0126	−0.017963	0.003790	0.121	42	0.00884	0.078	500	96 784
`teardropv16_sim`	0.1111	−0.060057	0.011169	0.986	42	0.00822	0.073	500	102 342
`teardropv15_sim`	0.1101	0.000108	0.000031	0.977	42	0.00822	0.073	500	101 640
`teardropv14_sim`	0.0105	−0.000399	0.000107	0.180	42	0.01579	0.140	500	147 308
`teardropv13_sim`	0.0327	0.081824	−0.016104	0.335	42	0.00947	0.084	500	103 408
`teardropv12_sim`	0.1142	−0.082268	0.017660	1.013	42	0.00822	0.073	500	98 754
`teardropv11_sim`	0.0409	0.126733	−0.023357	0.358	42	0.00812	0.072	500	98 722
`teardropv10_sim`	0.0376	0.028238	−0.005250	0.329	42	0.00812	0.072	500	98 632
`teardropv9_sim`	0.0412	−0.008401	0.002439	0.362	42	0.00812	0.072	300	101 482
`teardropv8_sim`	0.0386	0.018869	−0.003138	0.338	42	0.00812	0.072	300	101 134
`teardropv7_sim`	0.0436	−0.000003	0.000000	0.087	20	0.00812	0.072	300	103 028
`teardropv6_sim`	0.0690	0.003395	−0.000320	0.112	20	0.00661	0.059	300	97 274
`teardropv5Simulation`	0.1155	−0.026288	−0.000346	0.160	20	0.00564	0.050	500	94 244
`teardropv4_sim`	0.0464	0.000068	0.000011	0.064	20	0.00564	0.050	300	95 182
`teardropv3_sim`	0.0306	0.000041	−0.000011	0.059	20	0.00789	0.070	300	103 400
`teardropv2_sim`	0.0385	−0.145422	−0.035030	0.205	42	0.00493	0.044	500	84 047

Rows without postProcessing/forceCoeffs/…/forceCoeffs.dat list coefficients as — and a short note. Mesh cell count is read from constant/polyMesh/owner header when present.

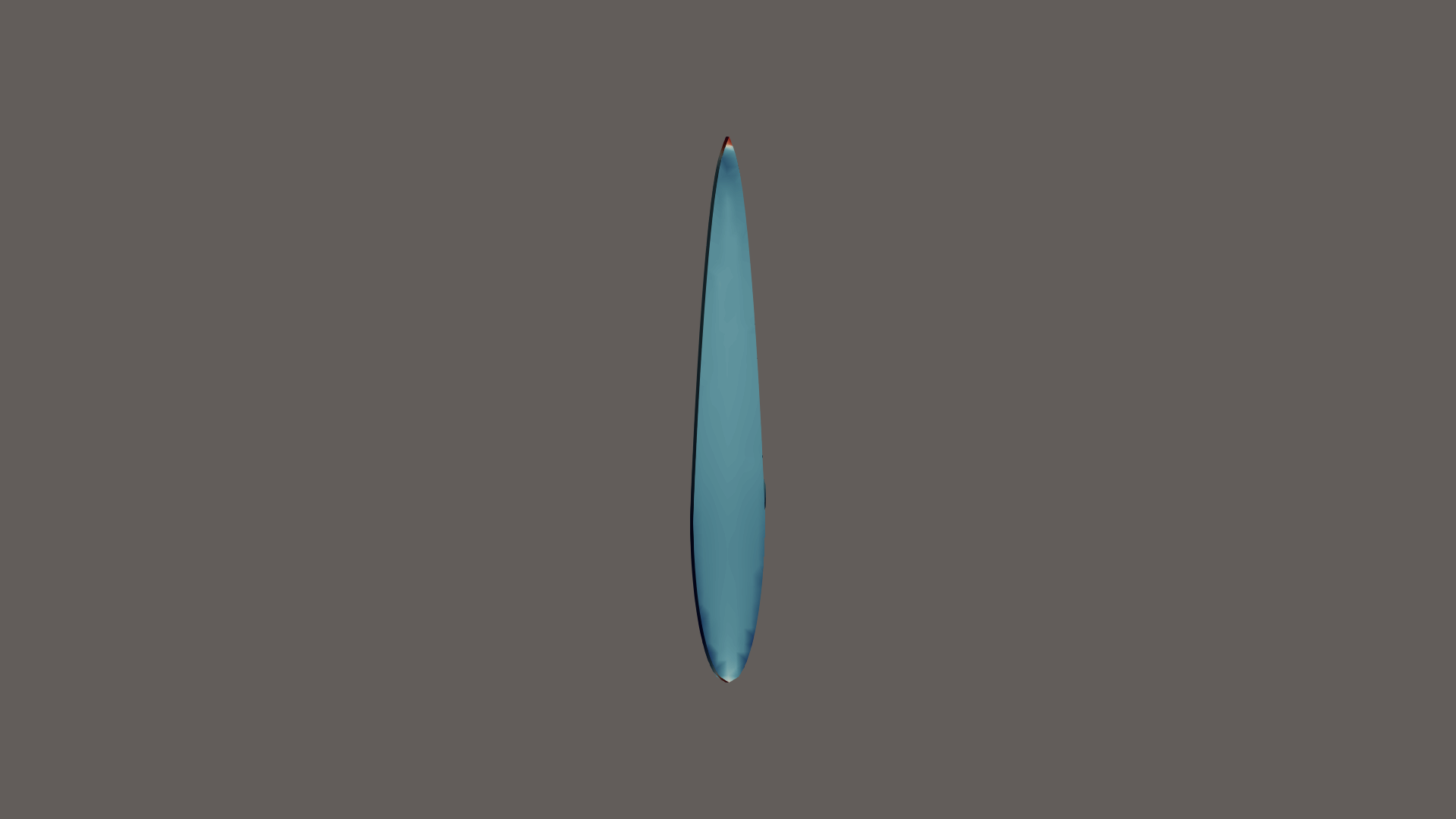

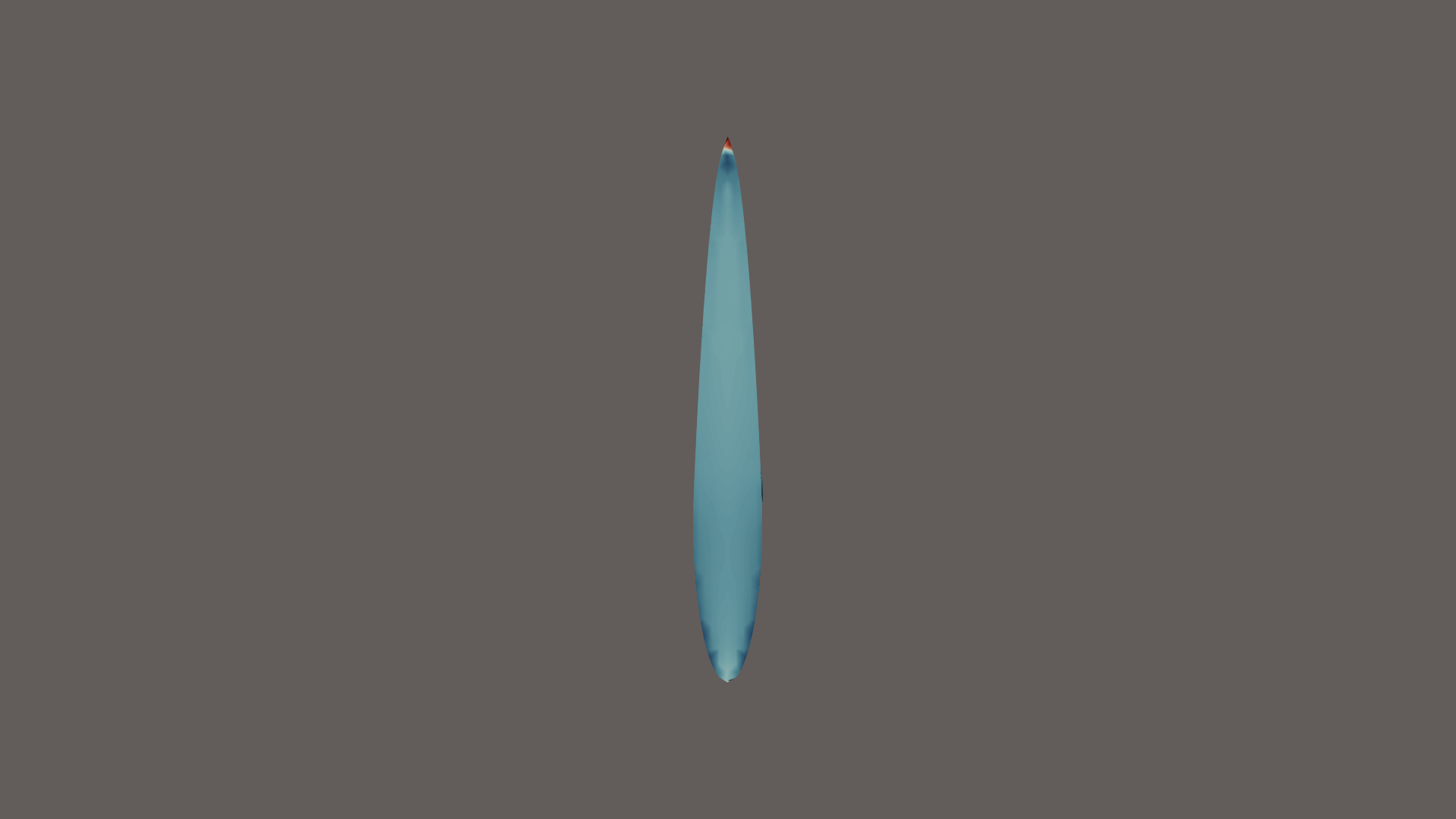

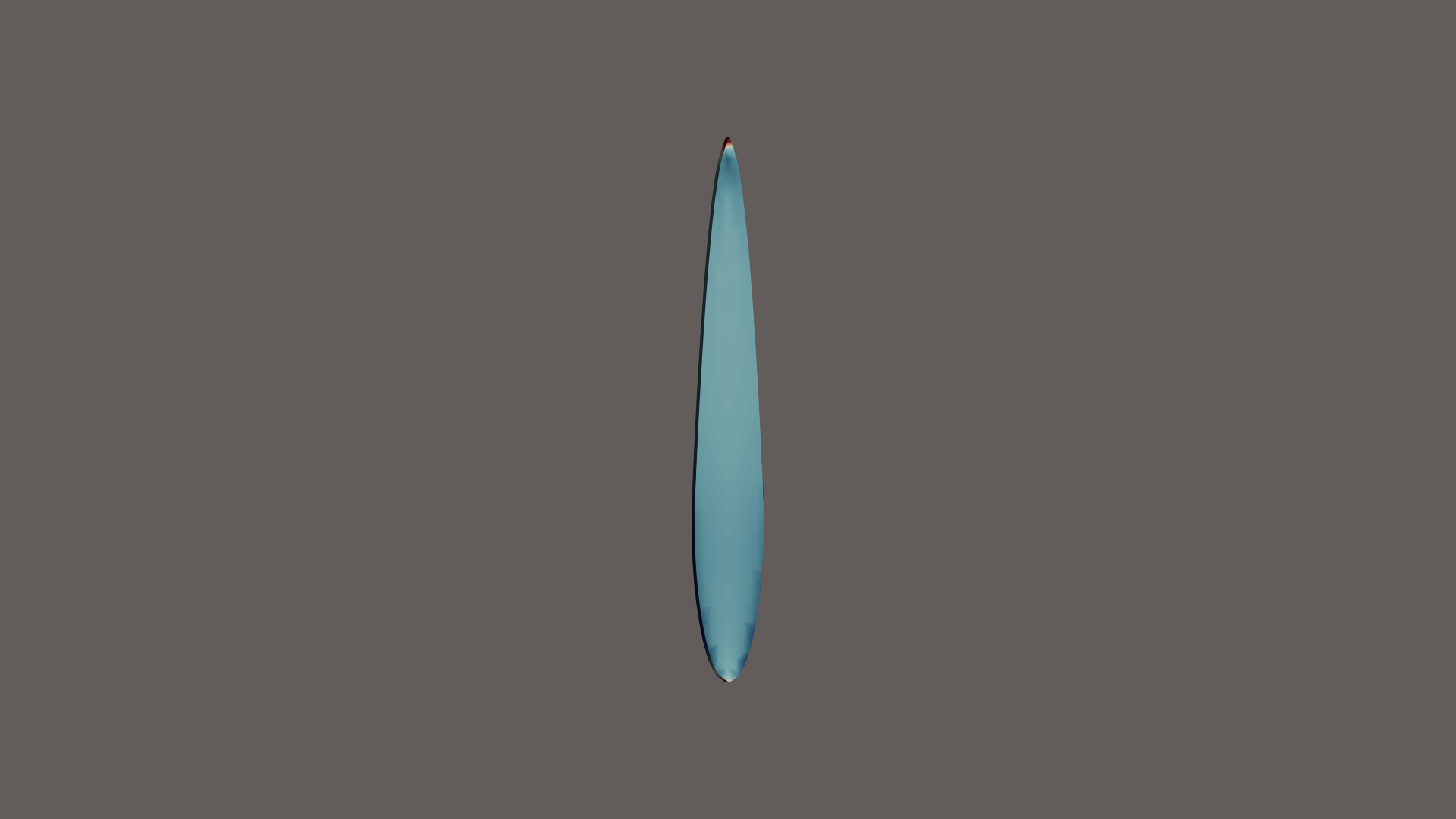

Pressure visuals (OpenFOAM write time 500)

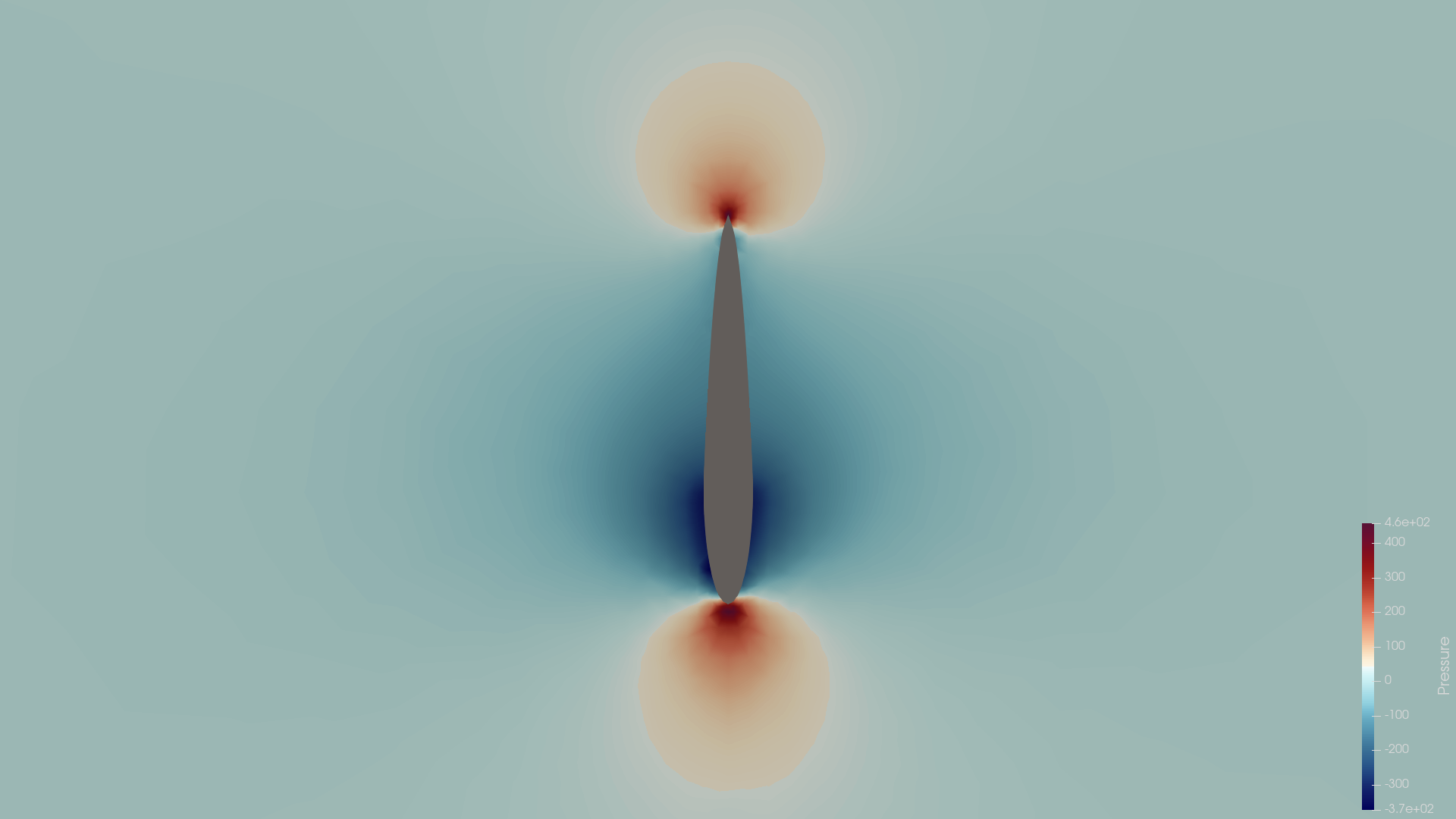

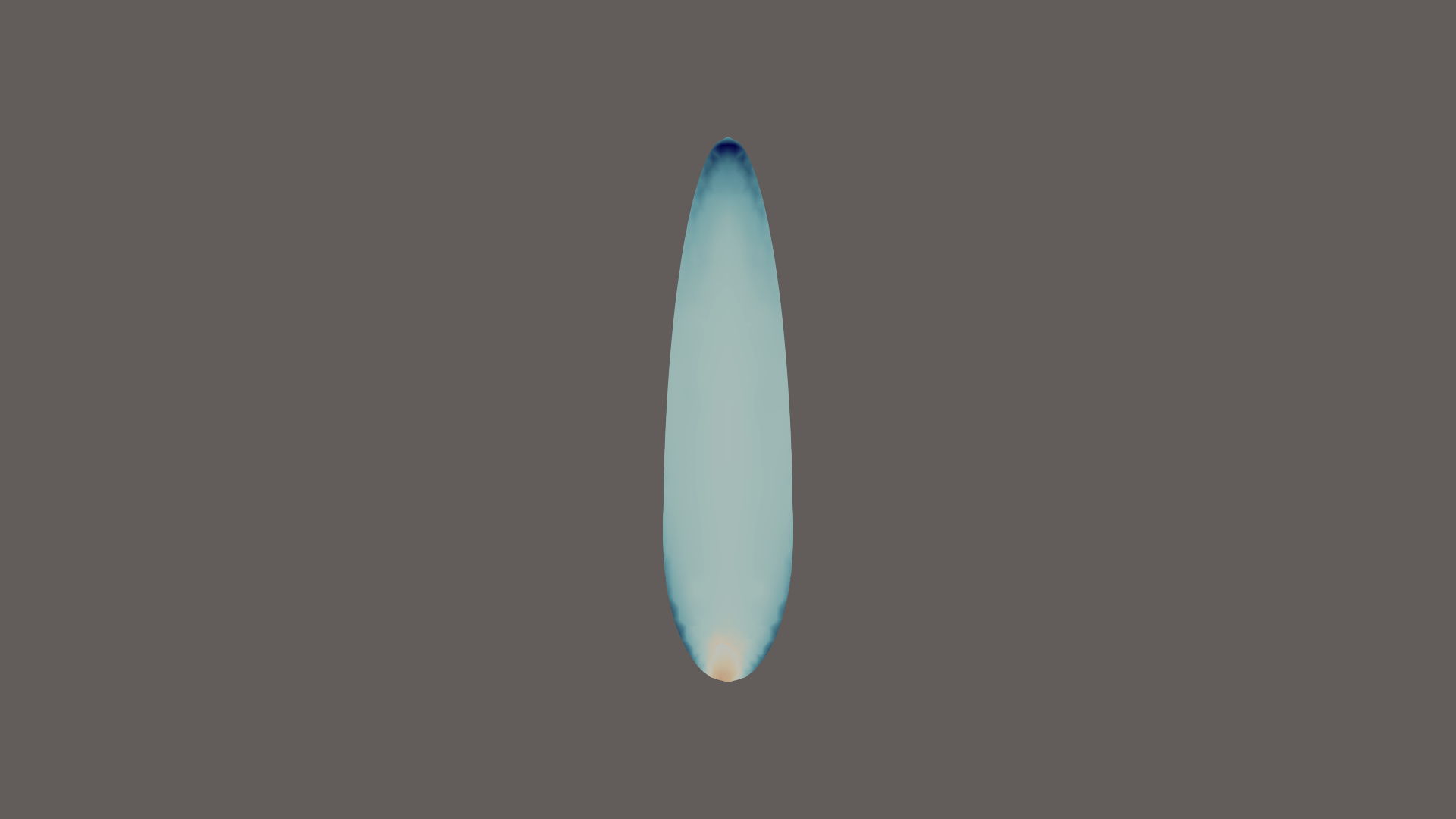

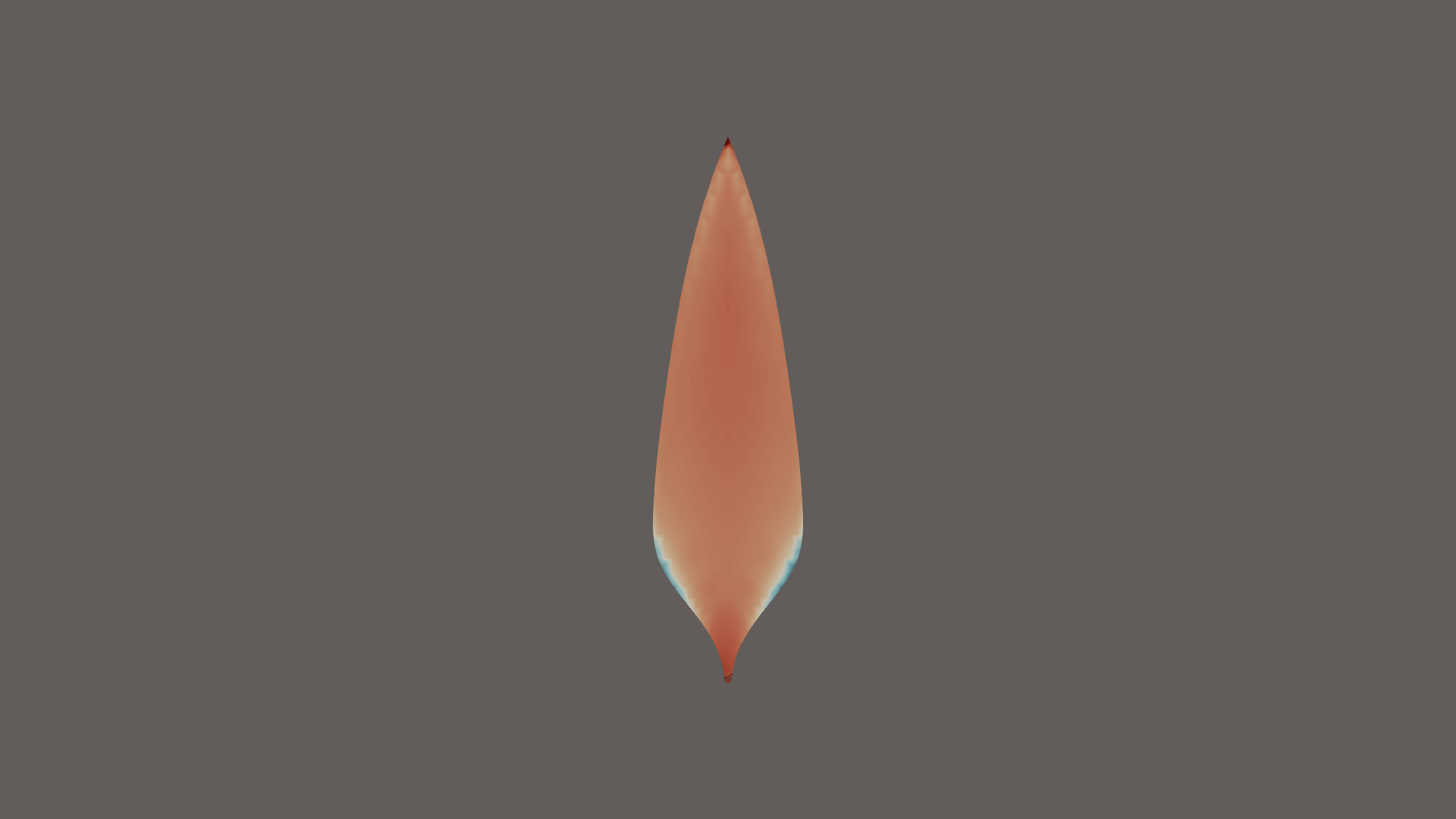

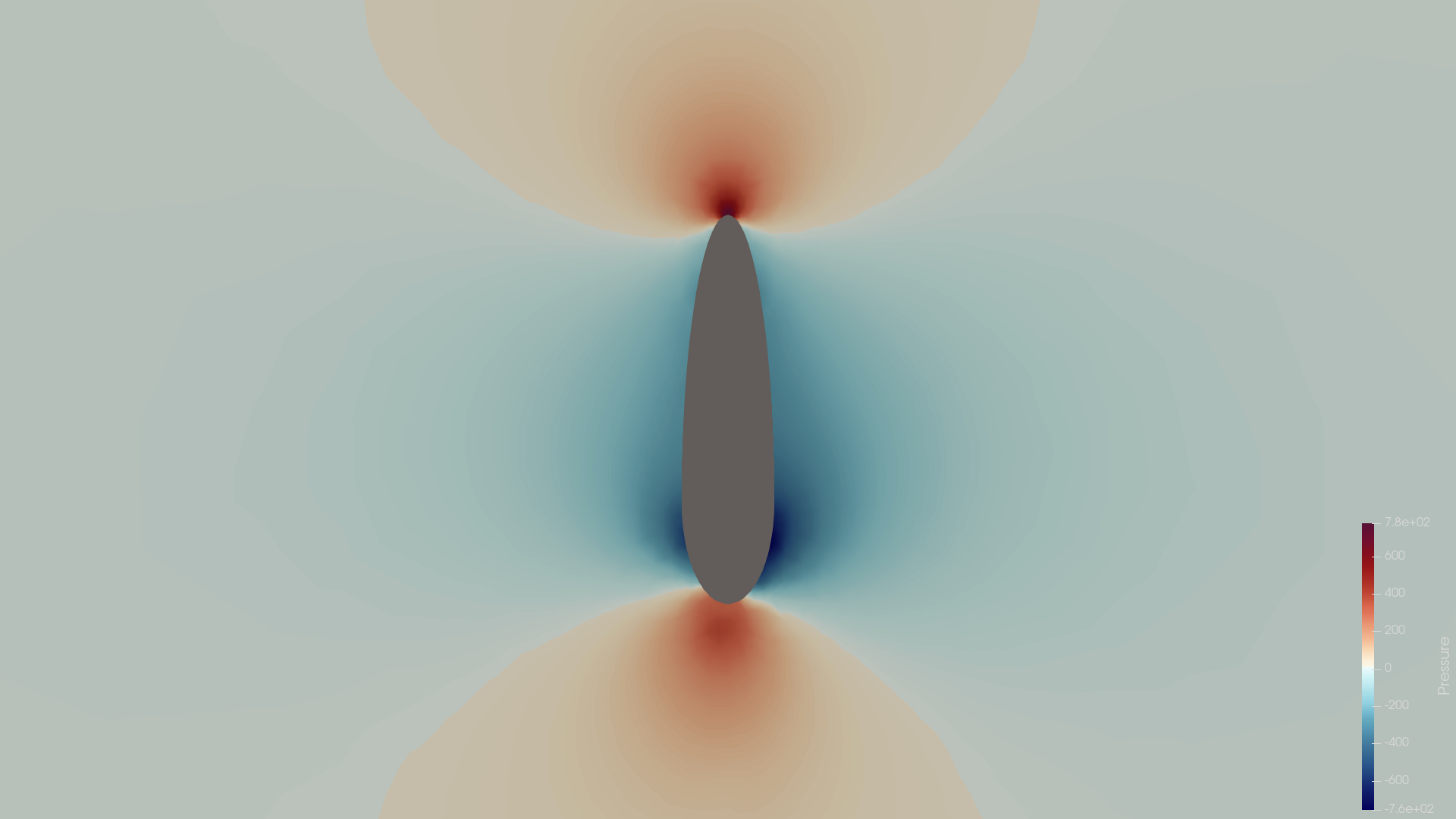

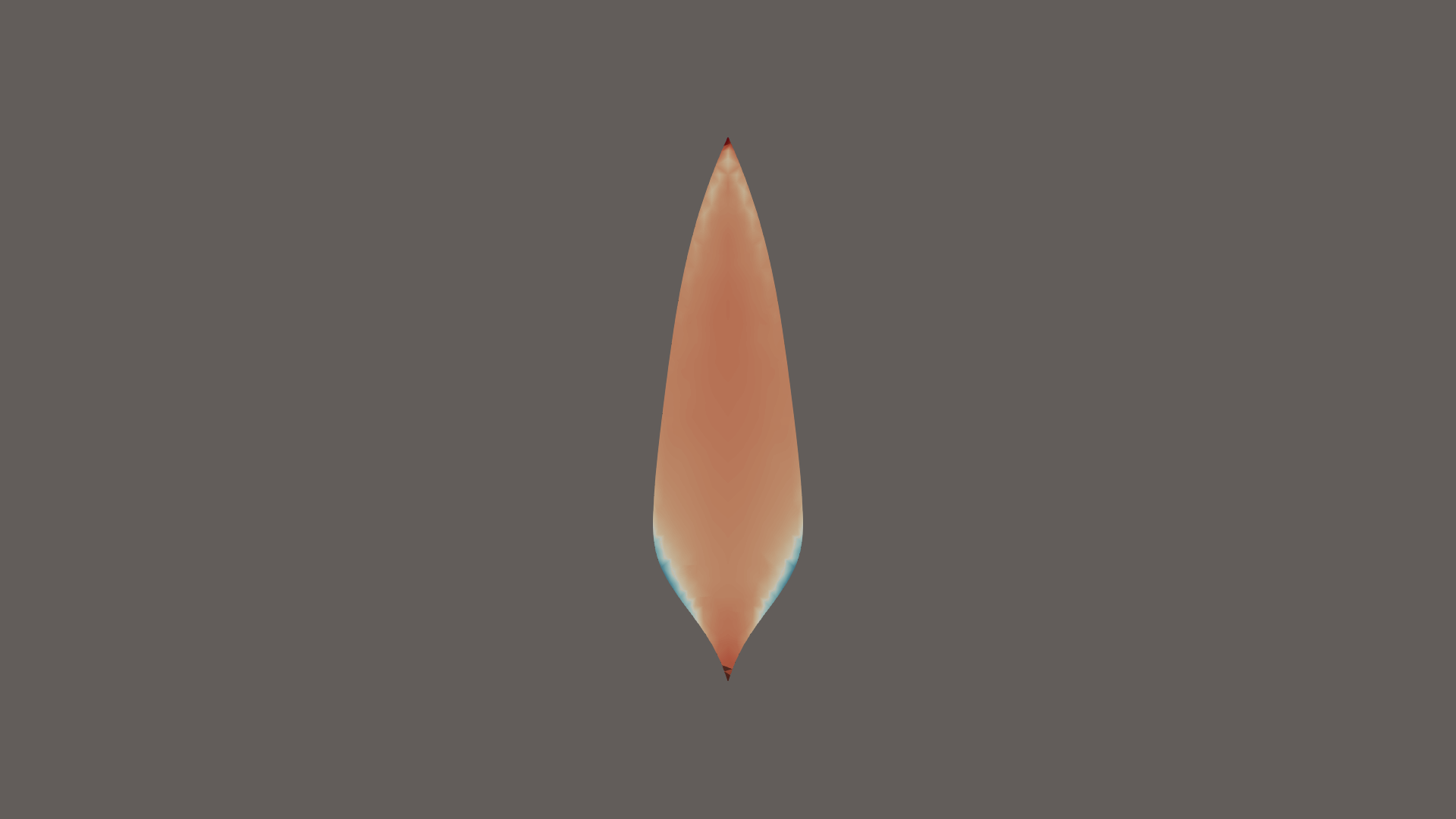

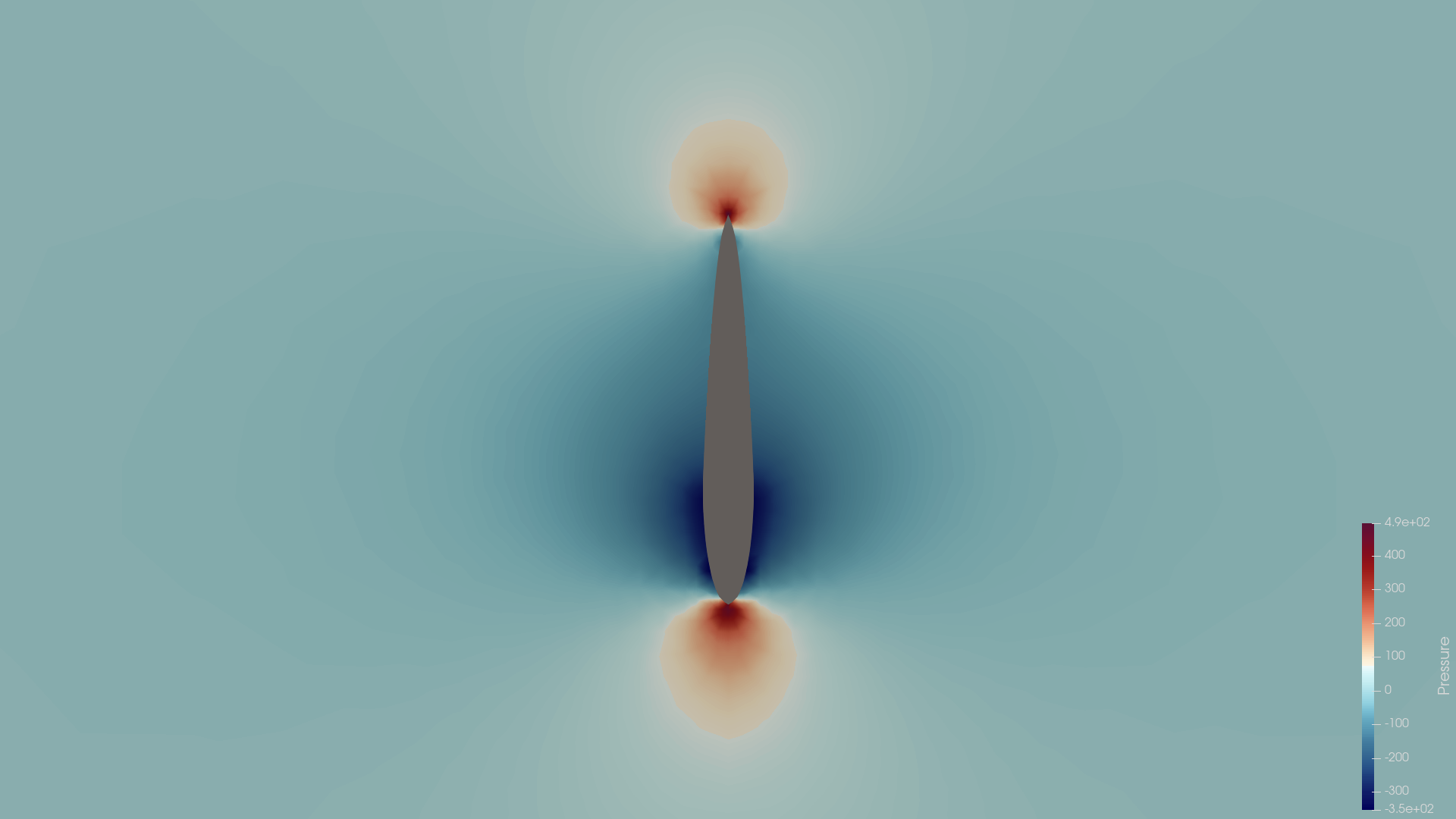

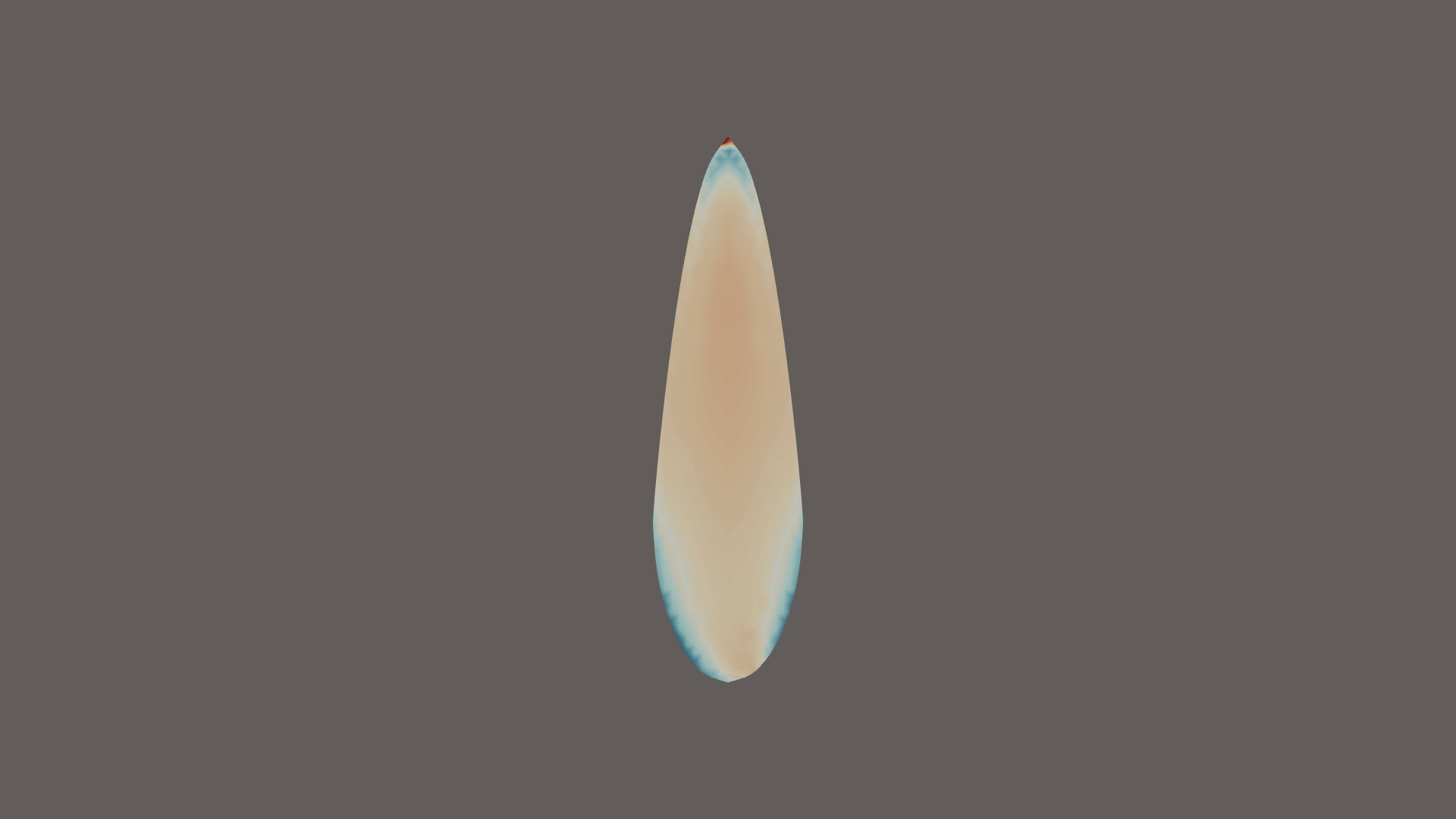

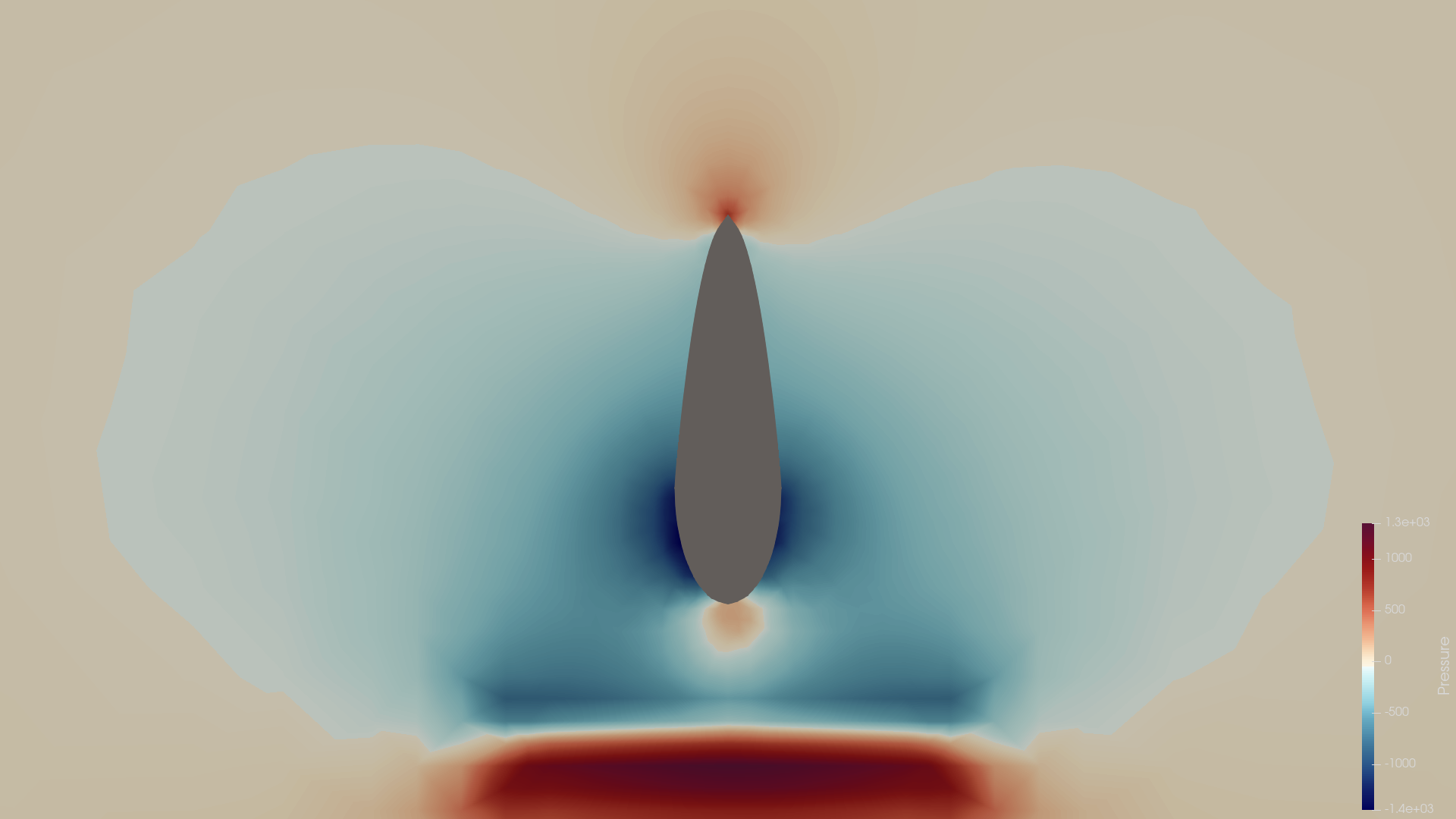

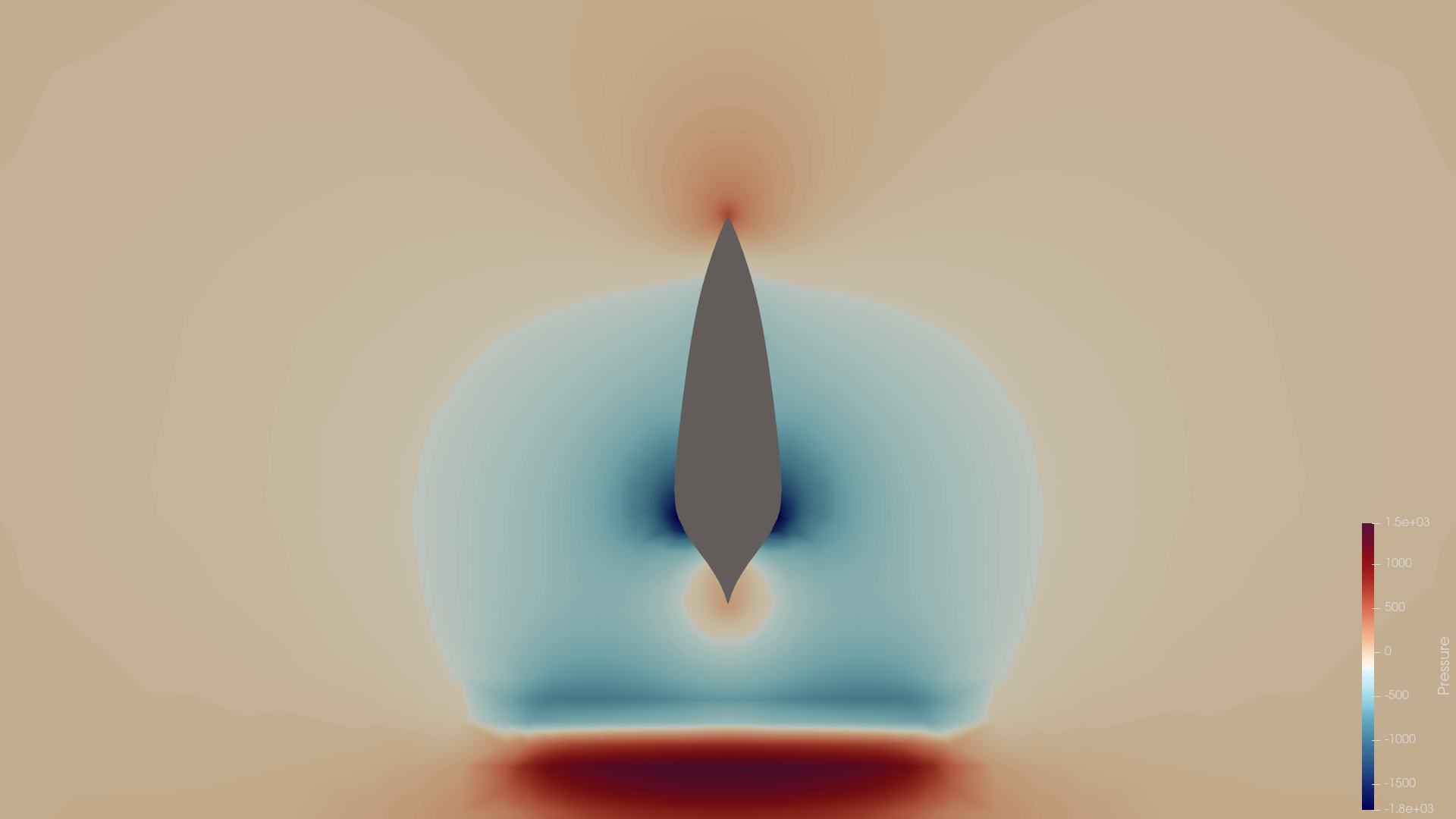

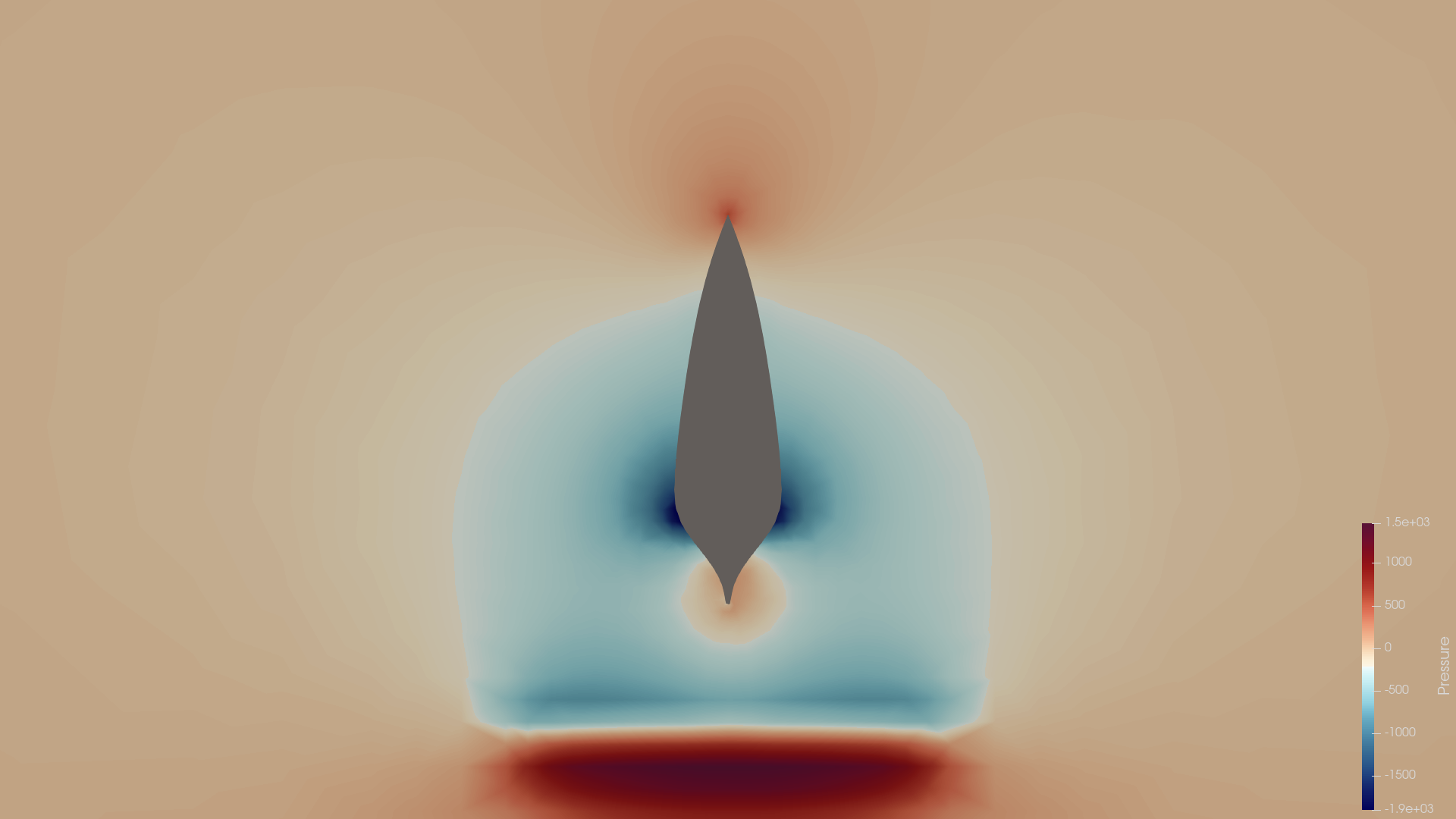

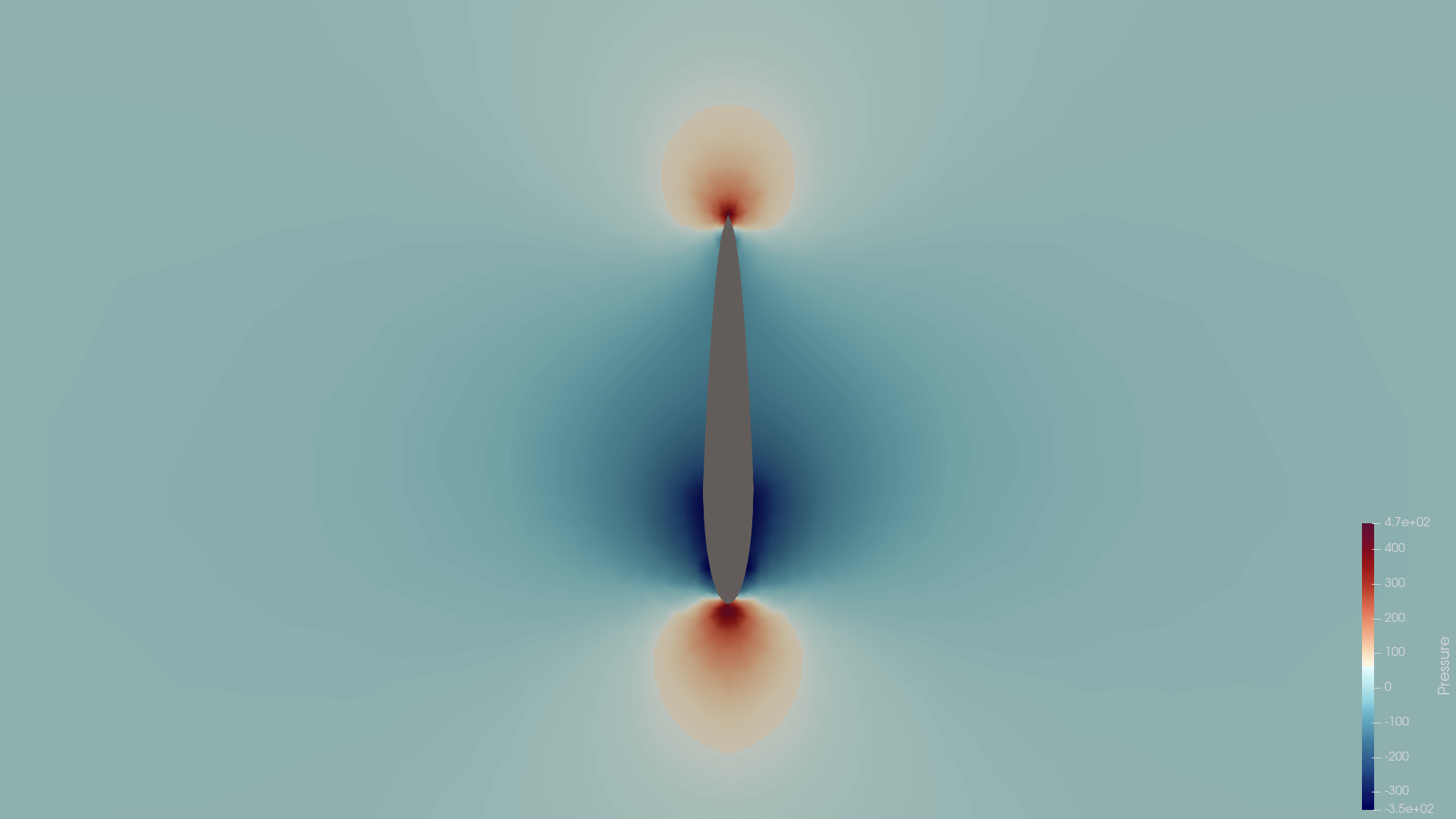

Mid-height volume slice on the Y = 0 plane (p); then wing surface p from the +Y side. foamToVTK + render_pressure_pair.py (xvfb-run pvpython).
